| Type | Model | Polyimide Thicknessμm（mil） | Copper Thickness μm（oz/ft2） | Feature |
|

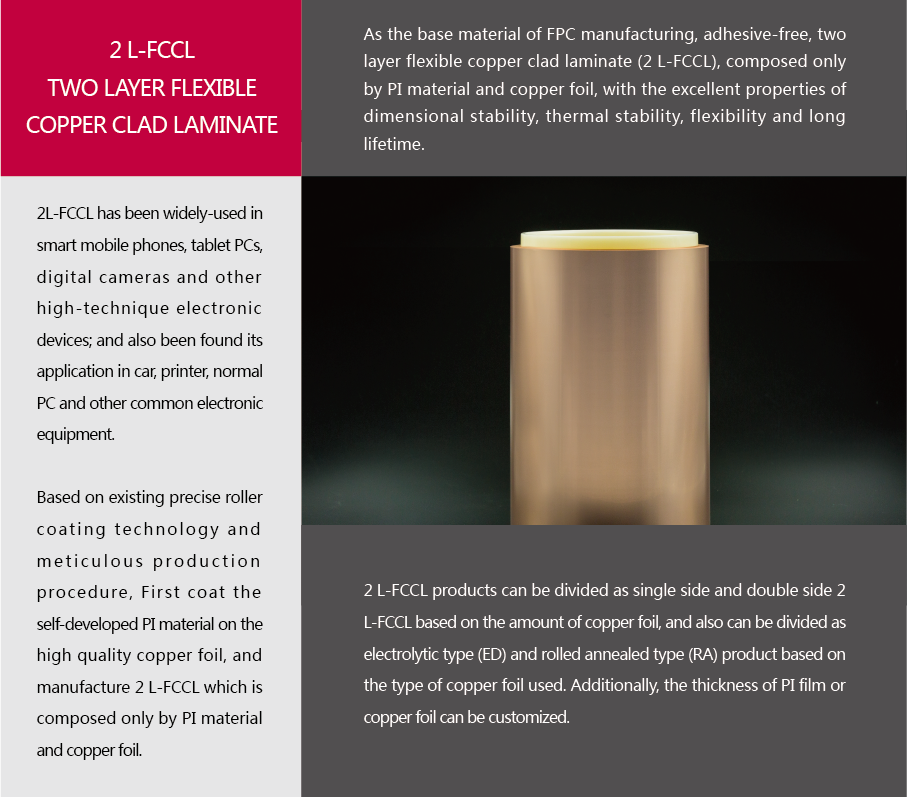

Single side 2L-FCCL |
FLS | 12.5（0.5）,20（0.8） | 12（1/3）,18（1/2） |
Dimensional
stability <±0.05%；
Peel strength>12N/cm；
Tensile strength（PI）>200MPa.
|
|
Double side 2L-FCCL |
FLD | 20（0.8）,25（1.0） | 12（1/3）,18（1/2） |
Dimensional stability<±0.05%； excellent dimensional stability, thermal resistance, and high reliability. |
Packaging
FLS & FLD series 2L-FCCL is supplied in standard widths of 250mm (9.84in) or 500mm (19.68in). Roll length is 50m (164 ft) or 100 m (328 ft) on a core. Other sizes are available by special order.
Storage Condition
FLS & FLD series 2L-FCCL is warranted for one year from the date of manufacture when stored in the original packaging at temperatures of 4-29℃(40-85 oF) and below 70% relative humidity. The products do not require refrigeration and should not be frozen.
